Standard 5-Rib Metal Panel
Our 5-Rib panel is popular on shops, pole barns, ag buildings, and residential roofs.

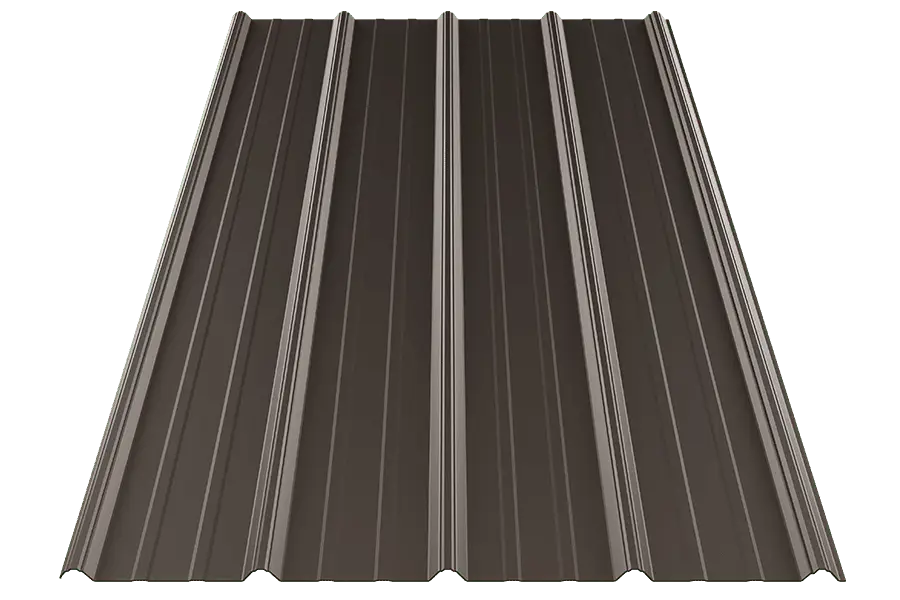

Buckeye’s Standard 5-Rib Metal Roofing Panel
Also known as ag panel or g-rib, our standard 5-rib panels have 3 tall and 2 short ribs spaced 9” apart. These panels use exposed fasteners and are economical and relatively easy to install on many types of buildings.
Standard panels typically come in 28g steel, but we also carry them in 26g (all of our colors) and 24g (select colors). These panels are excellent all-weather protection at an affordable price.
Available in nearly 40 colors including wood grain and fieldstone patterns, your panel and trim combinations are nearly endless. The limited lifetime transferable warranty on almost every color will give you peace of mind and value for decades.
Please note that the color shown in the print or on the monitor image may slightly differ from the actual color of the real metal panel. For the most accurate representation, request a physical sample from Buckeye Metal Sales.
View Color Chart PDFAlso available in Crinkle Finish
Panel Specifications
- 28 gauge
- Coverage: 36″
- Rib Spacing: 9″
- Rib Height: 3/4″
- Substrate: AZ50 Galvalume
- Limited lifetime warranty (40-year warranty on crinkle colors)
Other Resources
Your trim profile can also be customized. Contact us for details.
Overhead Door Trim
Ohio Sliding Door Jamb
Ridge Cap 12" x 16"
Z - Flashing
Rake Trim
Endwall Trim
Sidewall Trim
Transition
Eave Trim
Door Track Cover
"J" Channel
"FJ" Channel
Outside Corner
Rat Guard
Inside Corner
Snow Guard
"W" Valley
Base Angle
Your metal panels from Buckeye are made to last. They’re covered with a durable coating that holds up to sun, rain, wind, and humidity, and nearly all are backed by a limited lifetime transferable warranty.
More About Our Standard Panels
We form all of our standard panels from our wide inventory of steel coils. We also cut to custom lengths for your needs, which saves you time spent trimming panels as well as material cost.

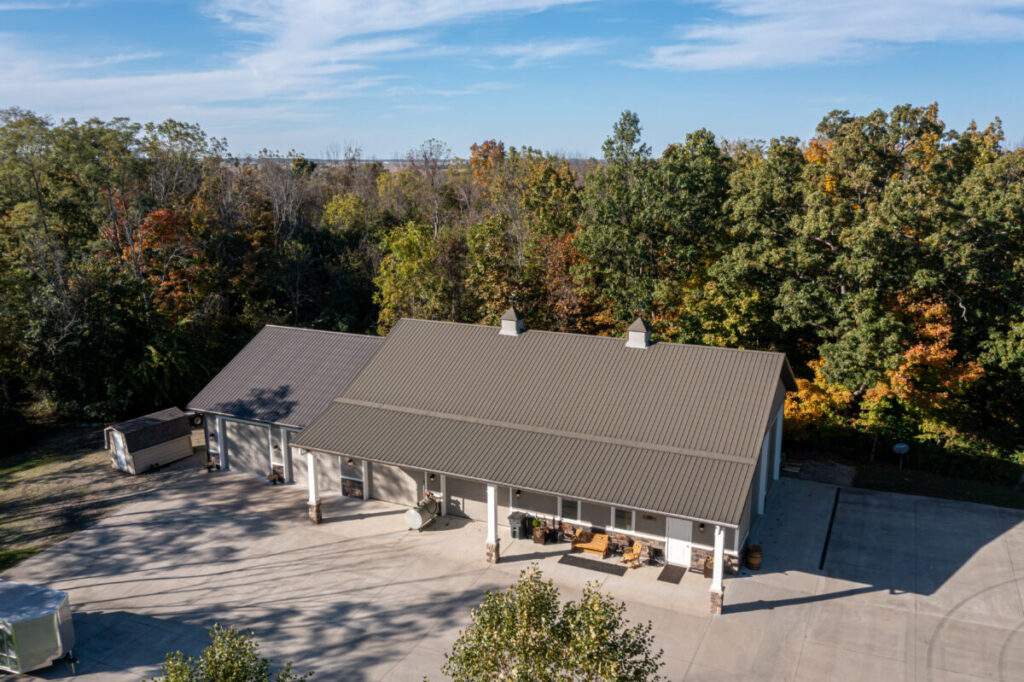

Photo Gallery
Need some roof inspiration? Check out our gallery to see how others are using Buckeye metal roofing panels.
Visualize It!
Want to see what your property could look like with a metal roof? Try our visualizer! You can upload your own photo or pick one from our library.
Ready to place your order?
If our standard panels are what you’re looking for, contact us to place your order. As with several of our panels, in most cases your order can be ready for same-day pickup or next-day delivery.
Still have questions? Call our front desk and talk to real people who know our products well and are eager to speak with you.
