5-V Crimp
Match an old roof or use this classic design for a special accent application! The 5-V Crimp panel is a simple, traditional solution for your residential and light commercial roofing needs.
Getting to Know Our 5-V Crimp Panels

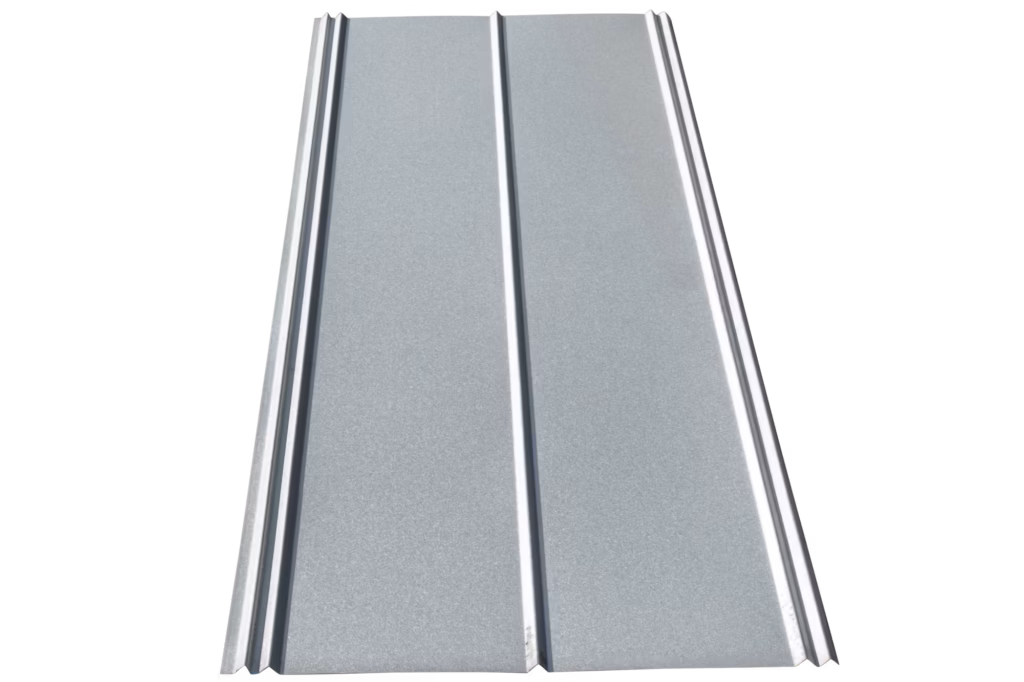

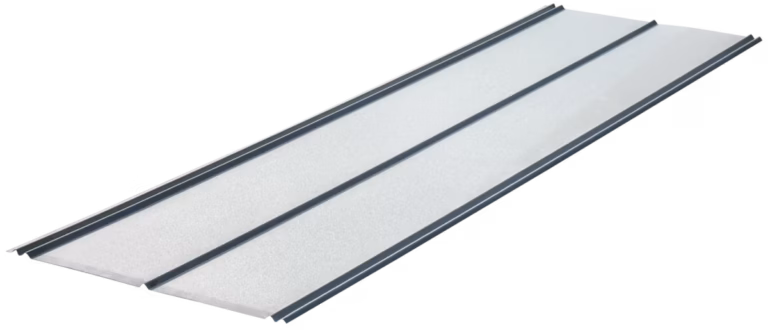

Often associated with farmhouses and Florida “Cracker” houses, this exposed-fastener roofing system was popular in the early 20th century and hasn’t lost its charm. The panel is named for the 5 inverted V’s that run its length.
With a longer lifespan than shingled roofs and good wind resistance, 5-V panels have proven themselves for over a century. If you have a style you’re trying to match or a design that calls for classic, these panels could be your solution.
We offer the 5-V Crimp in 8’, 10’, and 12’ lengths, and it is available standard in galvalume. It’s also available in a range of colors but those panels have a longer lead time.
The 20-year warranty on the 5-V Crimp will give two decades’ worth of a dry roof overhead.
Please note that the color shown in the print or on the monitor image may slightly differ from the actual color of the real metal panel. For the most accurate representation, request a physical sample from Buckeye Metal Sales.
24-Gauge Options
Galvalume
Panel Specifications
- 24″ Coverage (26″ Overall)
- Gauge: 24
- Rib Spacing: 12″
- 1″ x 1/2″ Rib
- Non-painted galvalume
We can custom make any trim pieces such as J and Corner trim that you may need to complete your project.
Your metal panels from Buckeye are made to last. They’re covered with a durable coating that holds up to sun, rain, wind, and humidity, and they’re backed by a 20-year warranty.
Installing 5-V Crimp
Despite the term “crimp,” these panels are installed in a similar way as other exposed-fastener panels–no crimping is needed for installation. Once the first panel is aligned with the roof, insert screws through the face of the panel. Once one panel is in place, simply overlap the next and continue installing screws until the roof is covered. Contact us for more detailed installation requirements.
Photo Gallery
Need some roof inspiration? Check out our gallery to see how others are using Buckeye metal roofing panels.
Visualize It!
Want to see what your property could look like with a metal roof? Try our visualizer! You can upload your own photo or pick one from our library.
Ready to place your order?
If our 5-V crimp panels are what you’re looking for, contact us to place your order. As with several of our panels, in most cases your order can be ready for same-day pickup or next-day delivery.
Still have questions? Call our front desk and talk to real people who know our products well and are eager to speak with you.
