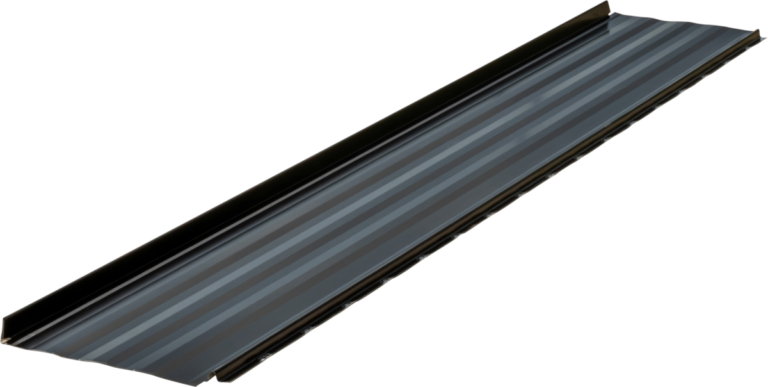

Standing Seam Panels

Curb Appeal Extraordinaire: Standing Seam Roofing.

With no exposed fasteners, these heavy-duty panels, available in an array of handsome colors, really dress things up. Absolutely leak-proof with a 50-year warranty, this is a long-term solution. Used for both commercial and residential, standing seam panels are custom-produced to length on-site at your location.

Our AkzoNobel CERAM-A-STAR 1050 COOL CHEMISTRY® paint system applied to the finest zinc-coated steel brings you the pinnacle of quality, durability, and energy efficiency available in the metal roofing and siding industry. This exceptional coating keeps your building cooler and reduces your energy bill by helping reflect the sun’s energy. This reduces the heat build-up in your attic. And it comes with our own 40-year Limited Warranty.

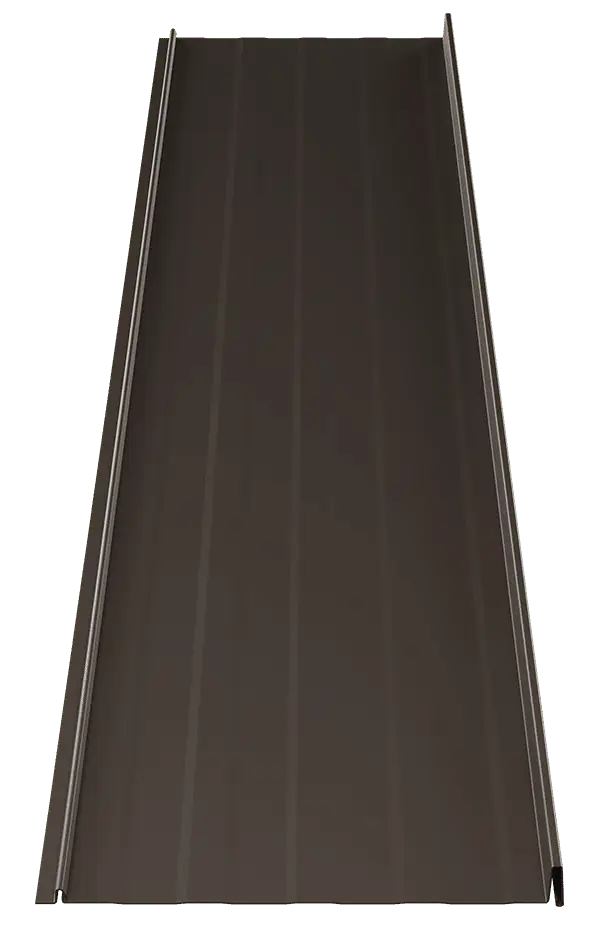

Flat Panel

Flat panel effects are attractive and unique. The old traditional tried and true standing seam panel. The clean straight lines also appeal to those favoring a modern look. This panel can be slightly prone to oil canning.

SPECIFICATIONS:

  • Panel Coverage: 15″
  • Special Coverage Optional
  • Bead Spacing: Flat
  • Rib Height: 1.5″
  • Substrate: G-100 Galvanized
  • 40-year warranty



BASE EDGE PROFILE FOR ALL PANELS:

edge profile
Click to Enlarge
Flat Panel - Standing Seam

Full Striation Panel

A very popular style. With slight ripples between the ribs, this style–with a distinctive, tall, narrow rib–creates a simple yet bold effect.

SPECIFICATIONS:

  • Panel Coverage: 15″
  • Special Coverage Optional
  • Bead Spacing: Full Striation
  • Rib Height: 1.5″
  • Substrate: G-100 Galvanized
  • 40-year warranty
Full Striation - Standing Seam

2 Bead Panel Profile

Our most popular profile. A double ripple between the ribs on this style create interest and extra surface effect. The perfect choice for contour that strikes the balance between the Full Striation and Three-Bead panel look.

SPECIFICATIONS:

  • Panel Coverage: 15″
  • Special Coverage Optional
  • Bead Spacing: 5″
  • Rib Height: 1.5″
  • Substrate: G-100 Galvanized
  • 40-year warranty



2 Bead Panel - Standing Seam

3 Bead Panel Profile

This profile has the most variance in the panel surface. The triple ripple between the ribs is attractive, stylish, and of most interest in residential applications.

SPECIFICATIONS:

  • Panel Coverage: 15″
  • Special Coverage Optional
  • Bead Spacing: 3″
  • Rib Height: 1.5″
  • Substrate: G-100 Galvanized
  • 40-year warranty
3 Bead Panel - Standing Seam

Spec Sheets & Color Charts

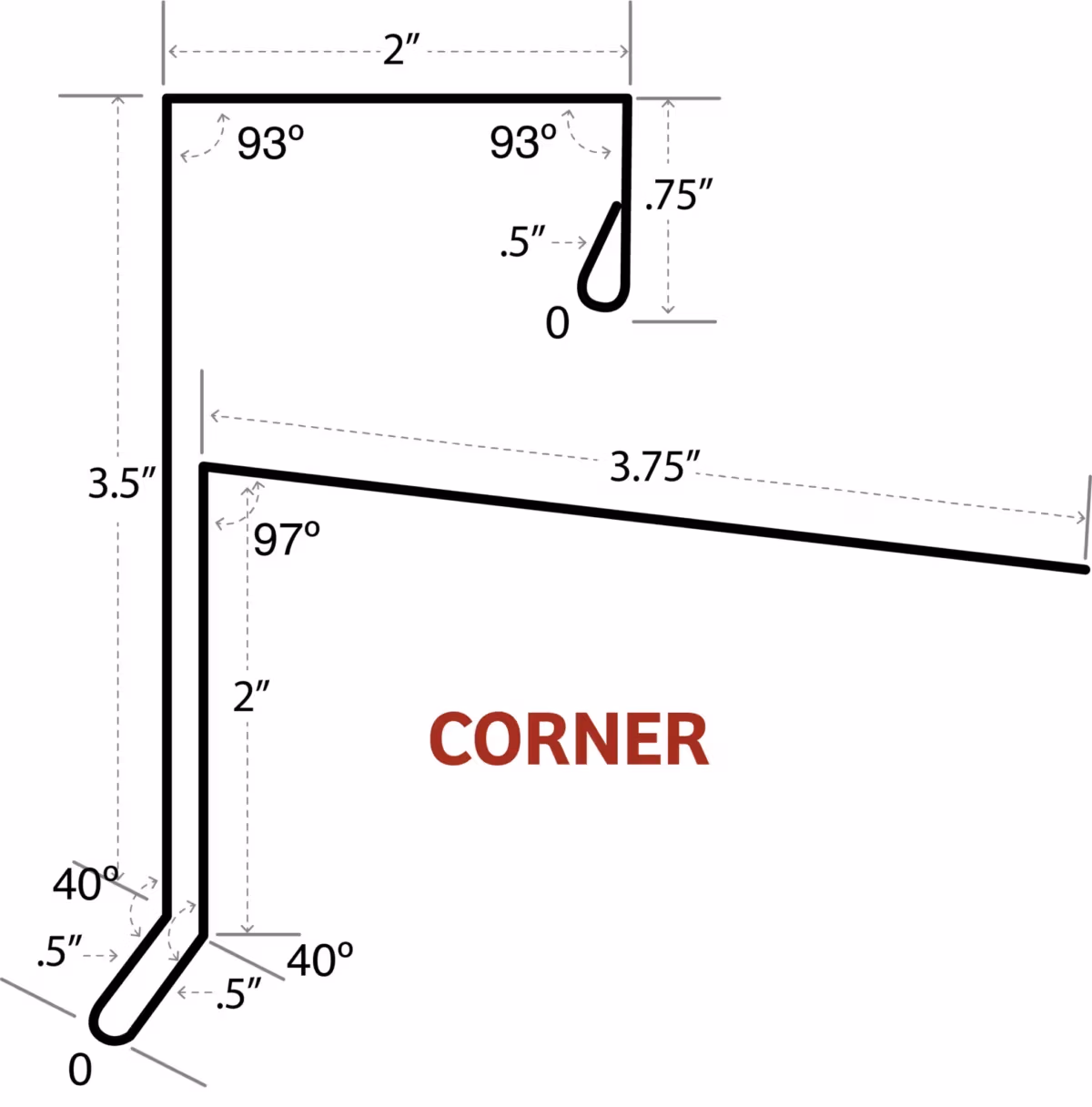

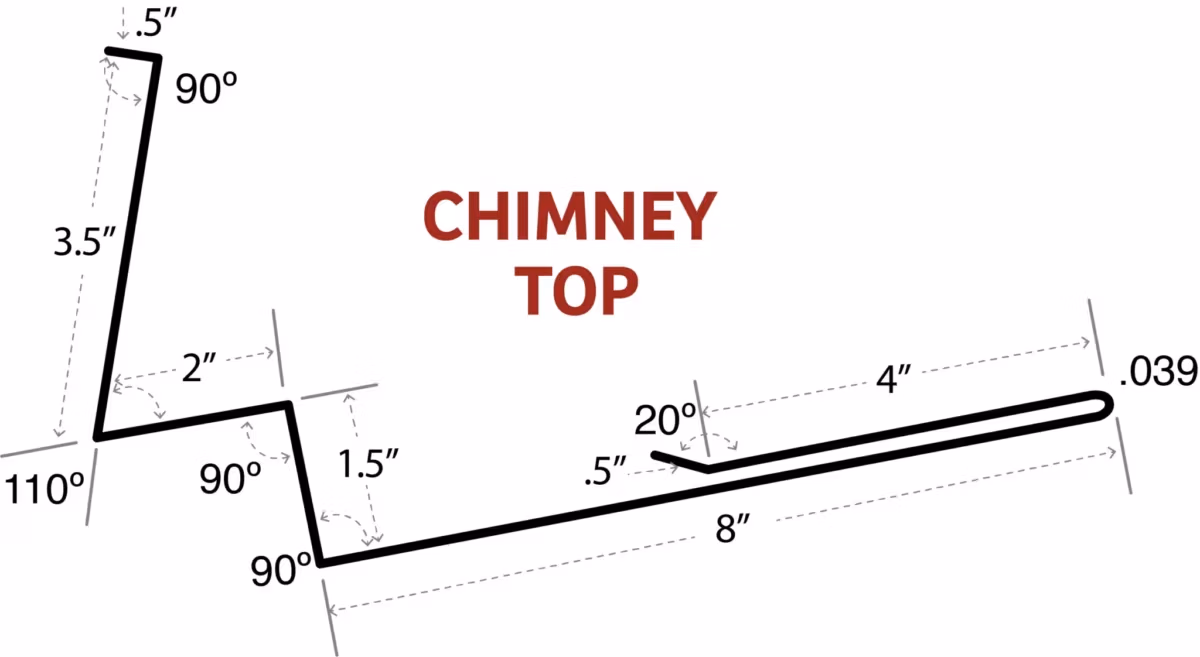

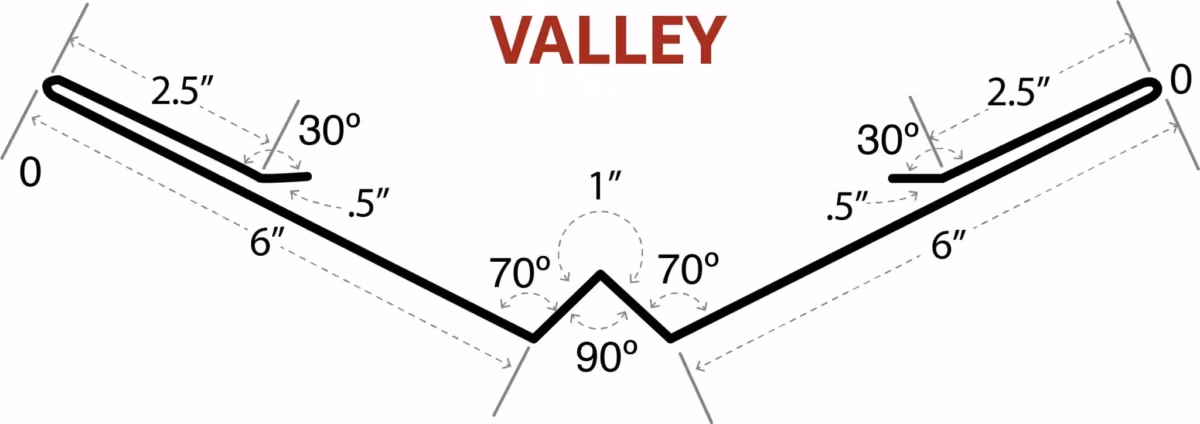

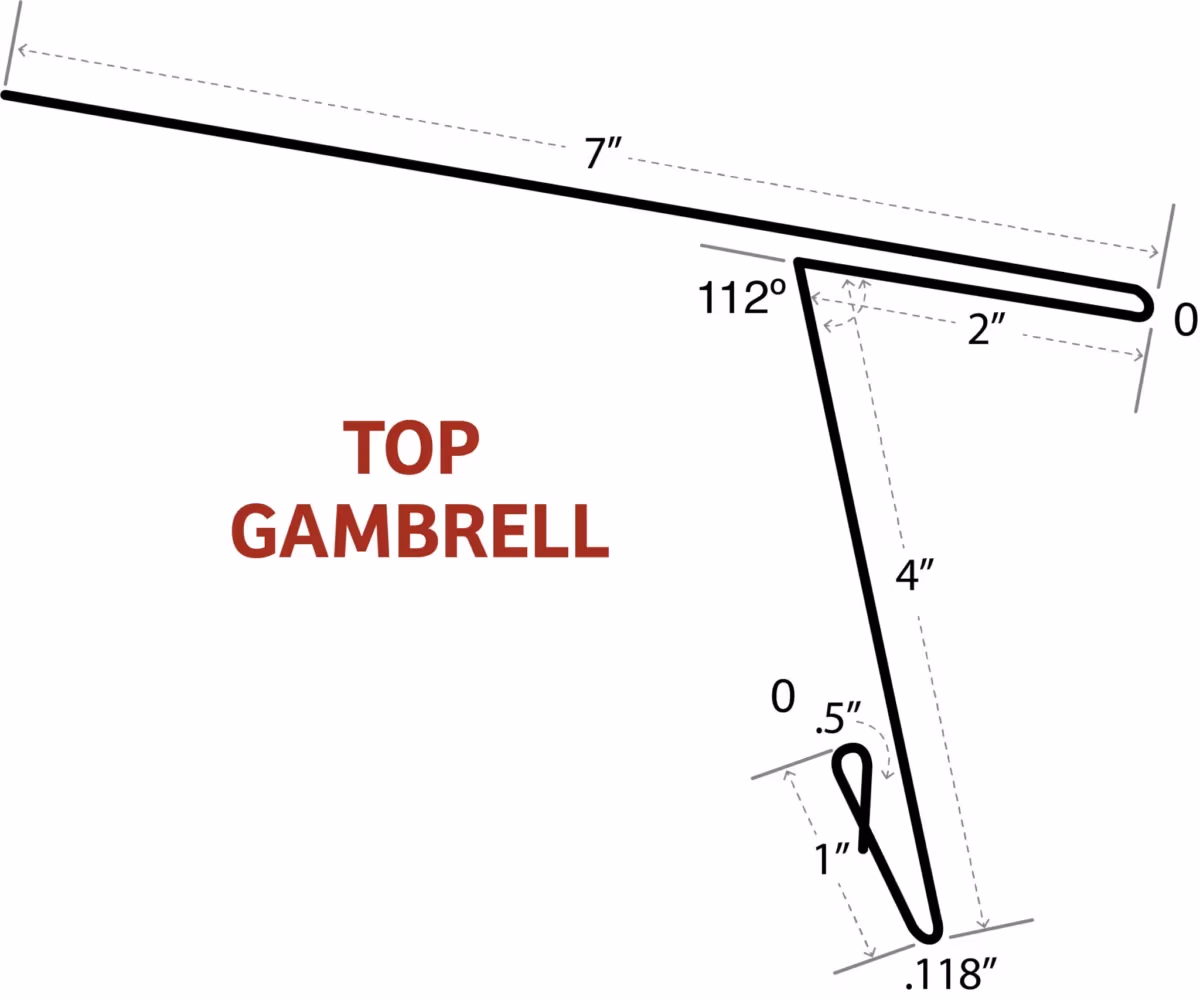

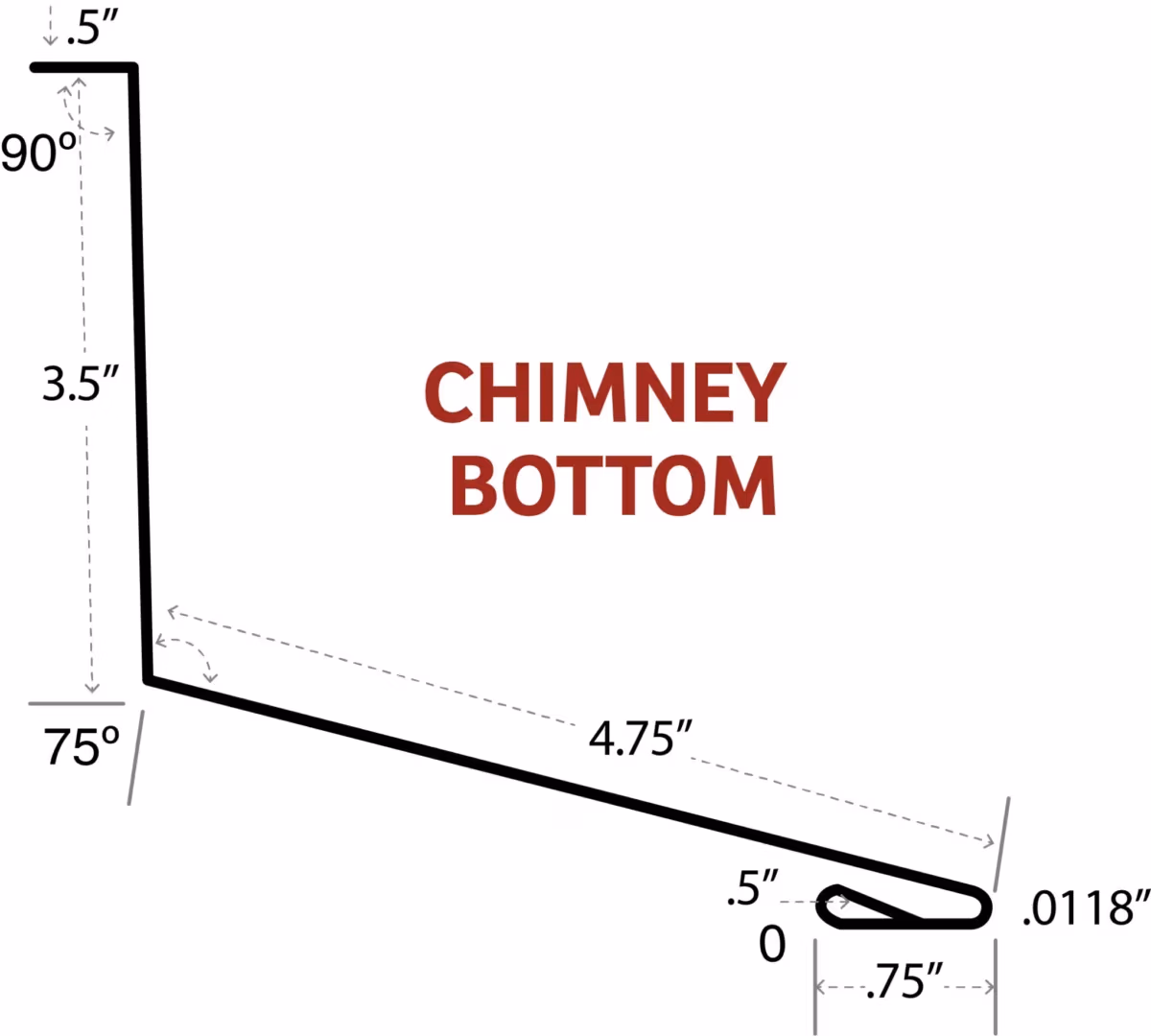

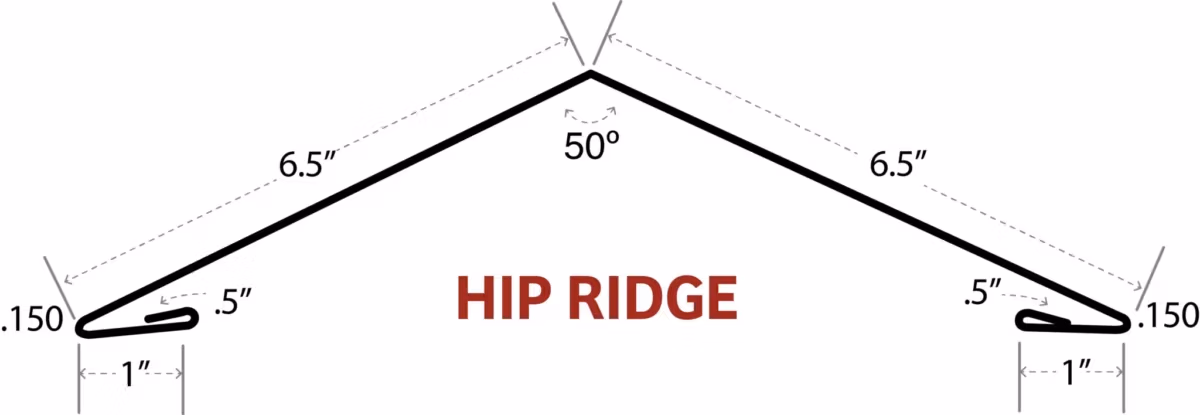

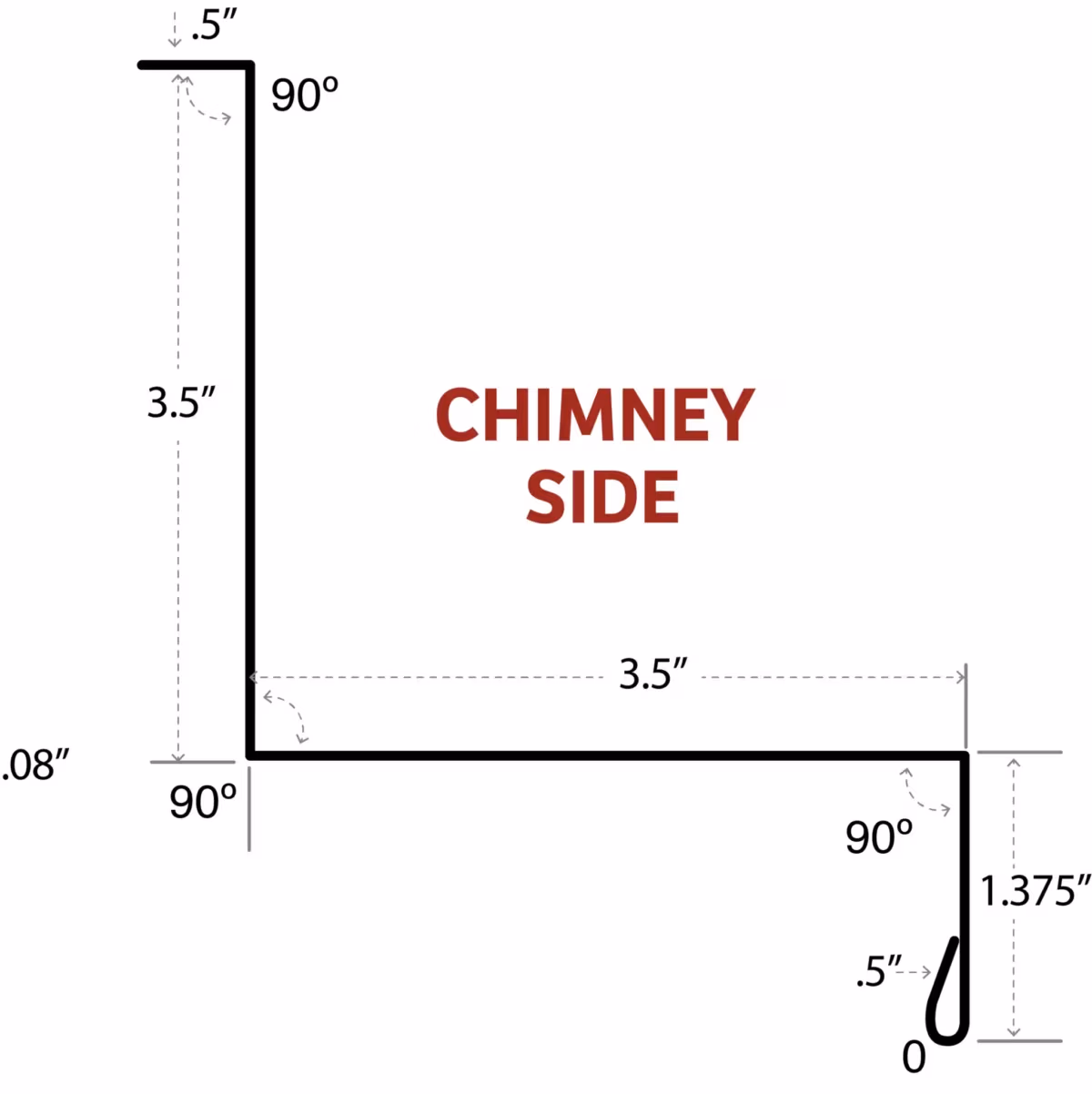

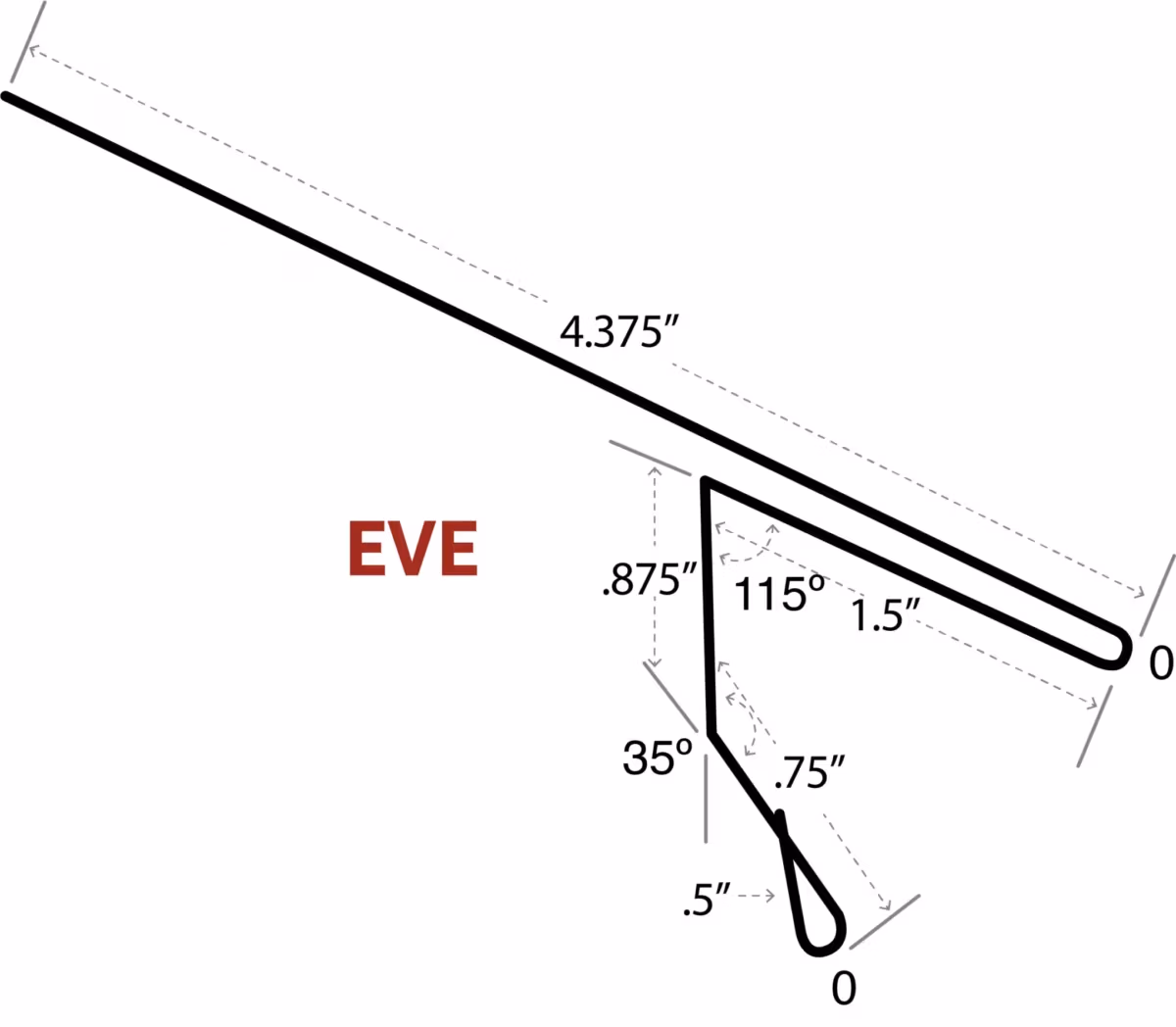

Standing Seam Trim Profiles
Trim Specifications
color chart
Color Chart
warranty
Warranty Info
Catalog cover
Sales Brochure
